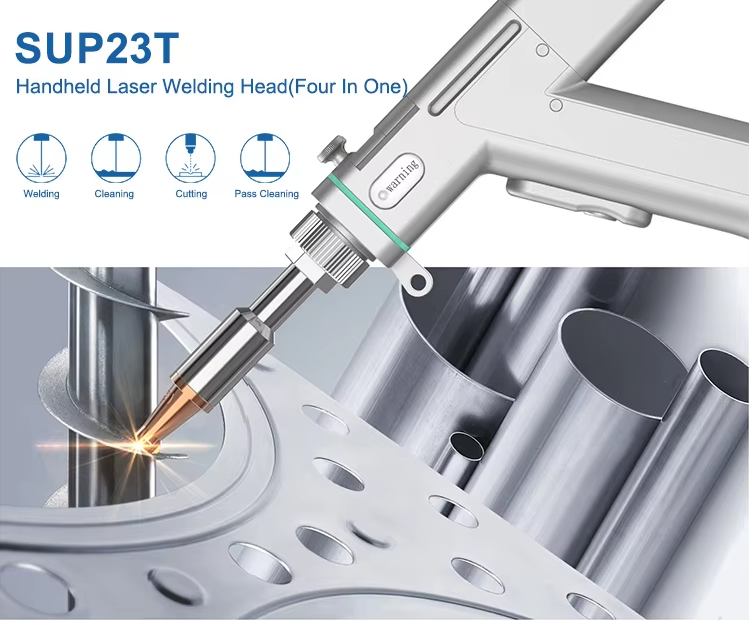

SUP23T Getfast Handheld Fiber Laser Welding Gun Chaoqiang Weiye for Welding Machine
Self-developed control system and structural design, adaptable to various welding needs within 3000W, with multiple safety alarms and status indicators set up to respond instantly to abnormal conditions. Net weight 750k, flexible operation and easy to use.
● The whole machine is more stable:
all parameters are visible, the status of the whole machine can be monitored in real time, problems can be avoided in advance, troubleshooting can be facilitated, and faults can be easily solved to ensure the stable operation of the handheld welding head.
● Subversive structural design:

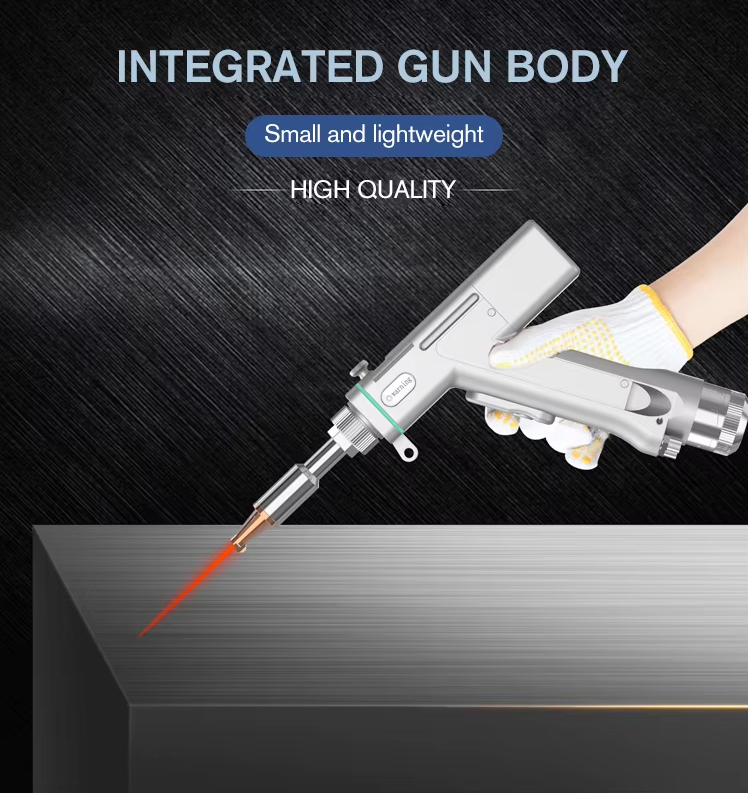

The main structure is designed and processed in one piece, which greatly reduces the failure rate and facilitates later maintenance.
● Controllable parameters and high repeatability.
|
Product name
|

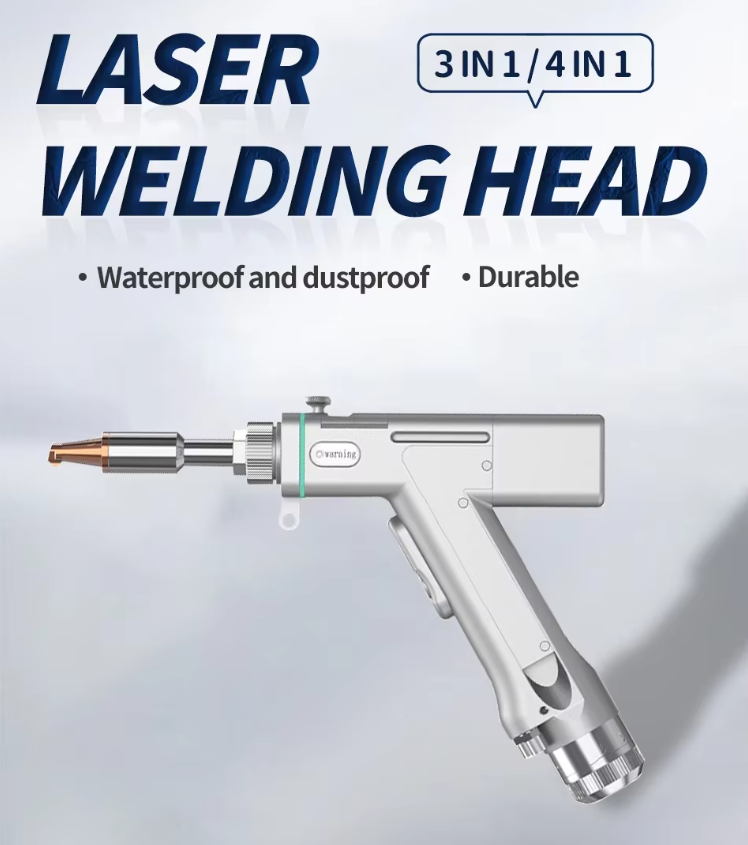

SUP23T Handheld laser welding head
|
|
Power level
|
3000W
|
|
Scope of application
|
≤3000W
|
|
Collimation focal length
|
60mm
|
|
Focus focal length
|
150mm
|
|
Maximum air pressure
|
15Bar
|
|
Vertical focus range
|
±10mm
|
|
Spot adjustment range
|
Line 0-8mm
|
|
Applicable wavelength
|
1070nm
|
|

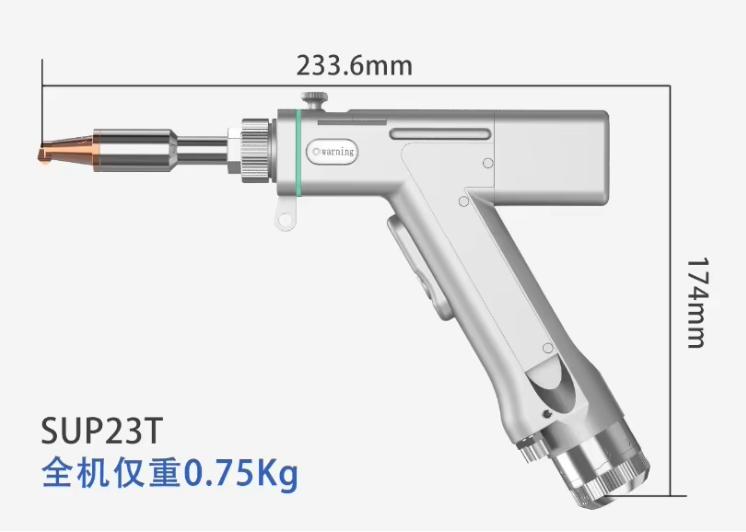

Weight
|
0.75kg
|
1. Safety-foolproof: independent research and development of safety detection system, built-in real-time monitoring of temperature;

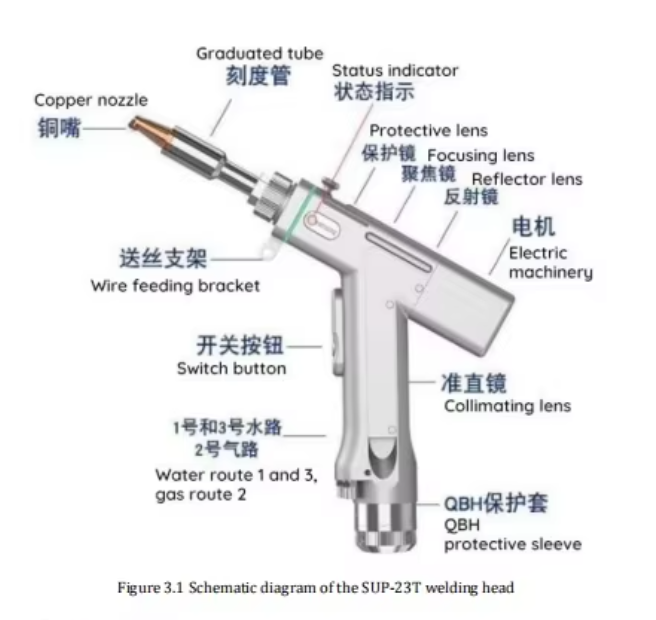

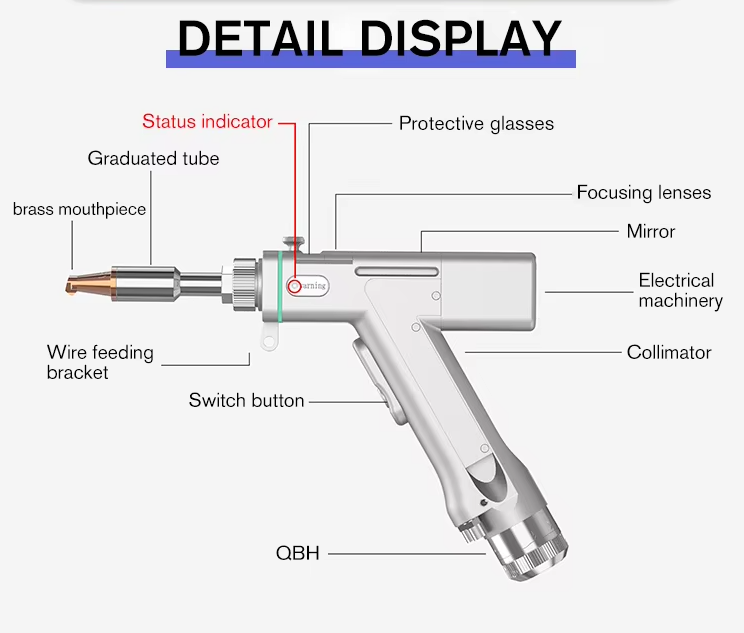

2. Time-saving - efficient and convenient: the focusing mirror and protective mirror are made into drawers, and the collimating mirror and QBH are integrated, which can be plugged and plugged in, which is convenient for on-site replacement;

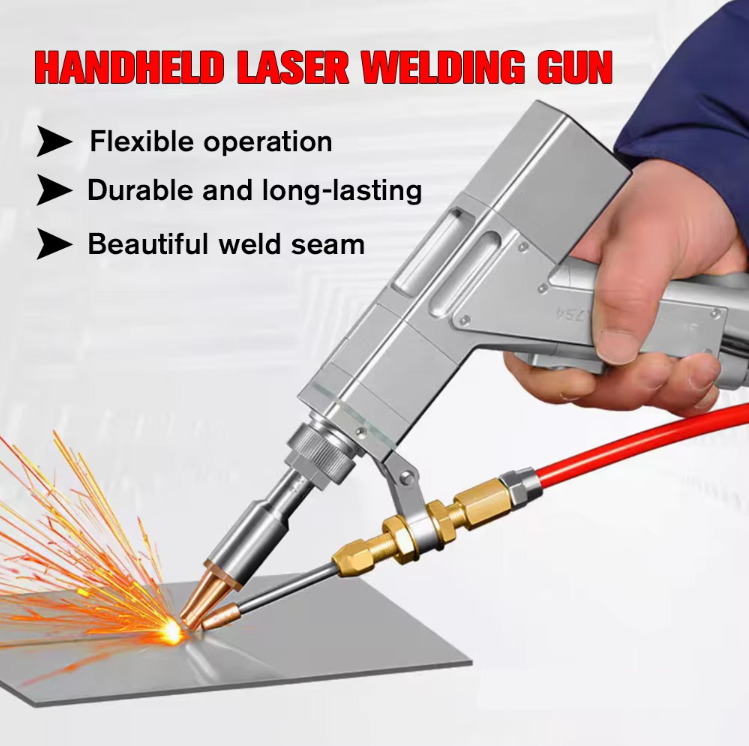

3. Lightweight - Lightweight and light-weight: Compared with the previous generation, the weight is further reduced, the operation is more flexible, the hands are easier to use, and the grip is more comfortable;
4. Quality - beautiful welding, stable performance: the optical structure is further optimized, the welding strength is high, the deformation is small, and the penetration depth is high;
5. Performance-multiple functions: support handheld continuous welding, spot welding, cleaning, bead cleaning, cutting, "hand" and"self" integration, password authorization, real-time monitoring of all interfaces, convenient on-site maintenance, and remote support.
